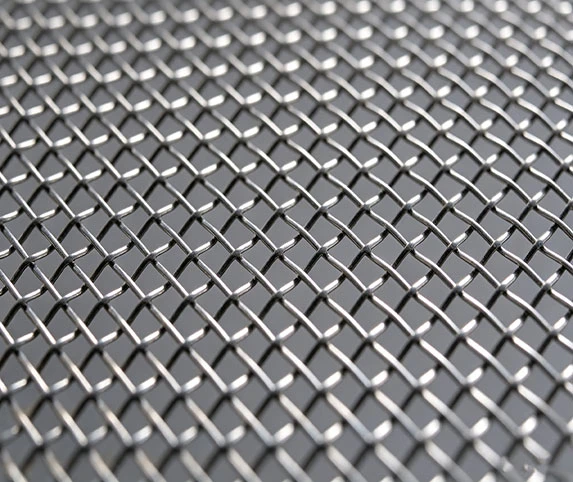

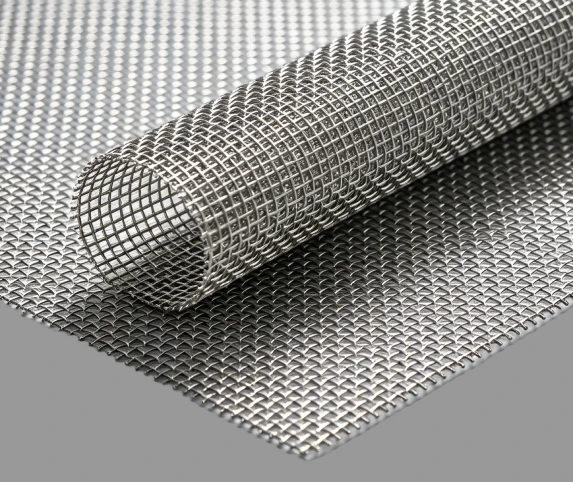

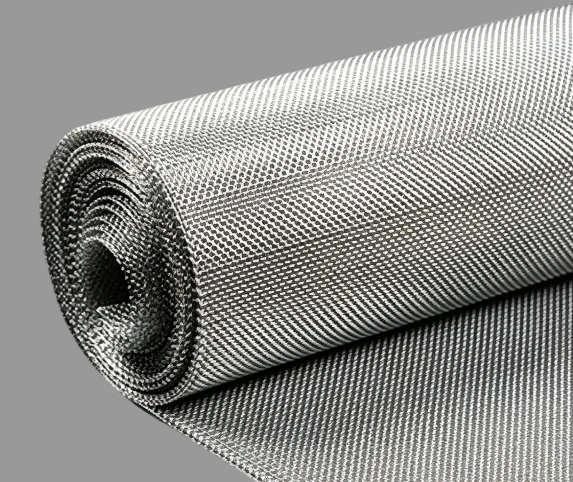

| Guangtong Inconel Wire Mesh Specifications |
| Alloy |
Key Properties |
Wire Diameter |
Mesh Count |
Max Temperature |
Forms Available |
Best For |
| Inconel 600 |
Resists oxidation & chlorides |
0.025 mm (ultra-fine) to 6 mm (heavy-duty) |
2 to 500+ mesh (openings per inch) |
Up to 2200°F (1200°C) |
Rolls, sheets, custom-cut panels, perforated sheets, expanded metal, heat treating baskets or trays. |
Furnace components, chemical processing |
| Inconel 601 |
Superior oxidation resistance |
0.025 mm (ultra-fine) to 6 mm (heavy-duty) |
2 to 500+ mesh (openings per inch) |
Up to 2200°F (1200°C) |
Rolls, sheets, custom-cut panels, perforated sheets, expanded metal, heat treating baskets or trays. |
Heat treatment fixtures, radiant tubes |
| Inconel 625 |
High strength, corrosion & fatigue resistance |
0.025 mm (ultra-fine) to 6 mm (heavy-duty) |
2 to 500+ mesh (openings per inch) |
Up to 2200°F (1200°C) |
Rolls, sheets, custom-cut panels, perforated sheets, expanded metal, heat treating baskets or trays. |
Aerospace, marine, nuclear |
| Inconel 690 |
superior oxidation & corrosion resistance |
0.025 mm (ultra-fine) to 6 mm (heavy-duty) |
2 to 500+ mesh (openings per inch) |
Up to 2200°F (1200°C) |
Rolls, sheets, custom-cut panels, perforated sheets, expanded metal, heat treating baskets or trays. |
corrosive, oxidizing, or nuclear environments |
| Inconel 718 |
Age-hardenable, extreme strength |
0.025 mm (ultra-fine) to 6 mm (heavy-duty) |
2 to 500+ mesh (openings per inch) |
Up to 2200°F (1200°C) |
Rolls, sheets, custom-cut panels, perforated sheets, expanded metal, heat treating baskets or trays. |
Jet engines, gas turbines |
| The common types of Inconel wire include Inconel 750, Inconel 800, and Inconel 825. |
| |
|
|
|
|
|
|
Mesh Count
(Mesh) |
Wire Diameter
(mm) |
Pore Diameter
(mm) |
Percentage of Opening
(Effective %) |
|
|
|
| 4 |
1.2 |
5.15 |
65.8 |
|
|
|
| 5 |
1.0 or 0.711 |
4.08 or 4.36 |
64.5 or 76 |
|
|
|
| 8 |
0.5 or 0.559 |
2.67 or 2.5 |
70.7 or 67 |
|
|
|
| 10 |
0.5 or 0.46 |
2.04 or 2.08 |
64.5 or 67 |
|
|
|
| 20 |
0.25 or 0.315 |
1.02 or 0.95 |
64.5 or 58 |
|
|
|
| 40 |
0.19 or 0.152 |
0.45 or 0.44 |
50.2 or 46 |
|
|
|
| 80 |
0.12 |
0.197 |
39 |
|
|
|
| 100 |
0.1 |
0.154 |
37 |
|
|
|
| 200 |
0.05 or 0.041 |
0.077 or 0.086 |
36.7 or 46 |
|
|
|
